Soundman D1 Interface

Specifications

• For USB-A, USB-C and Lightning devices
• Microphone inputs: TRS-3.5mm mic input（stereo）
• Microphone output: USB-C TO PC or mobile phone
• Headphone output: TRS-3.5mm（stereo）
• Microphone preamplification: 0-30dB
• Digital conversion (sample rate): 24bit/48KHz
• Headphone amplifier: 125mW (fIN = 1kHz, VDD=5V, RL=32Ω, THD+N=1%)
• Digital connection: USB-C
• Power supply: via connected device (USB)
• Output voltage：1.5V
• System requirements: Mac OS Big Sur, Windows 10, iOS 14, Android 9.0
• Suitable for (Applicable models): PC/laptop, iPhone, Android which includes OTG function (excluding Samsung series)

Feature

• Stereo recording adapter, real-time monitoring function;
• 24bit, 96khz sampling rate;
• Split adapter design, with one 3.5mm headphone monitor interface (TRS), one stereo microphone 3.5mm interface (TRS)
• Suitable for computers, iPhone/Android mobile phones which includes OTG function (excludes Samsung)

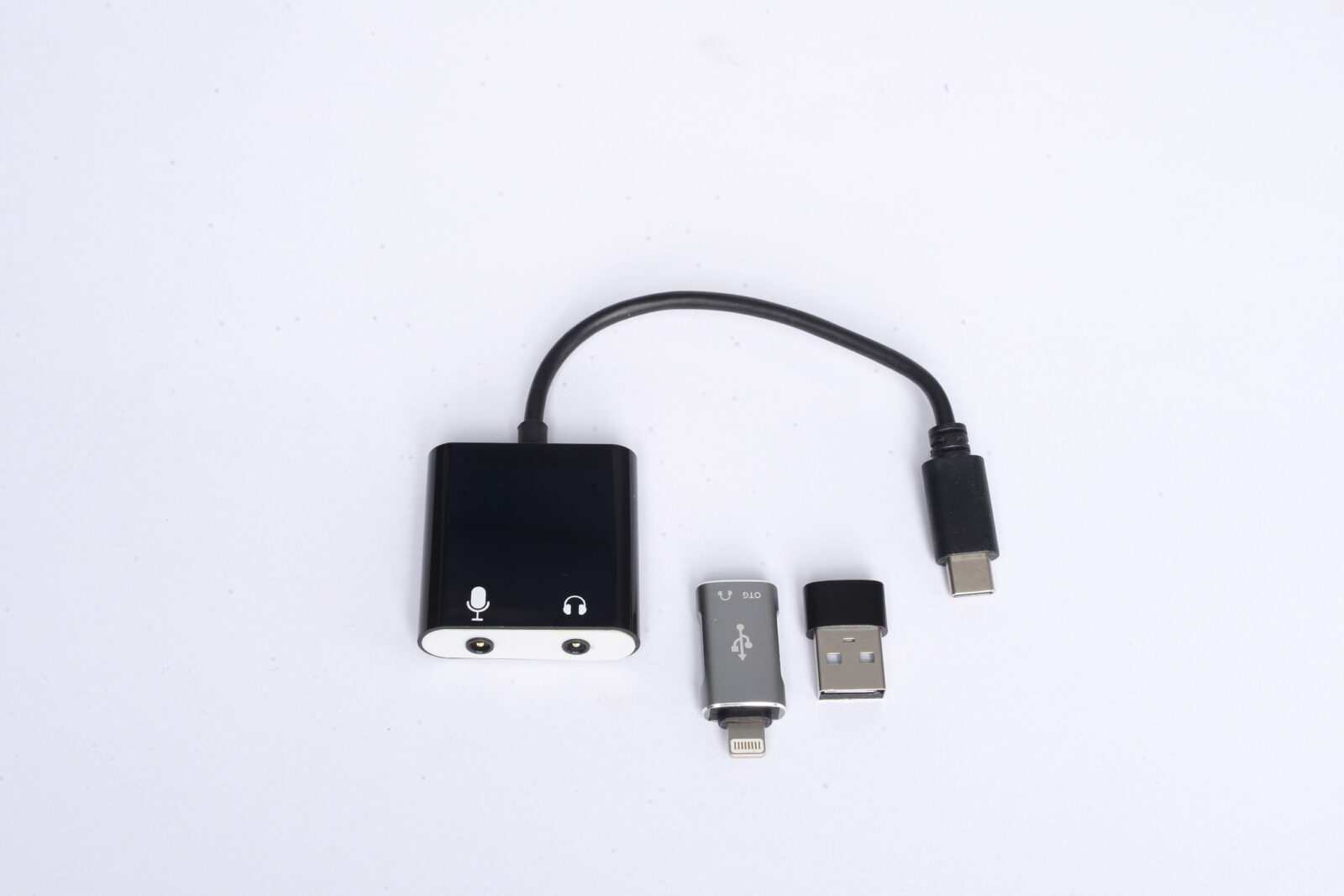

Packing List

• Soundman D1 Interface with USB C
• USB A adapter x1
• Lightning adapter x1
